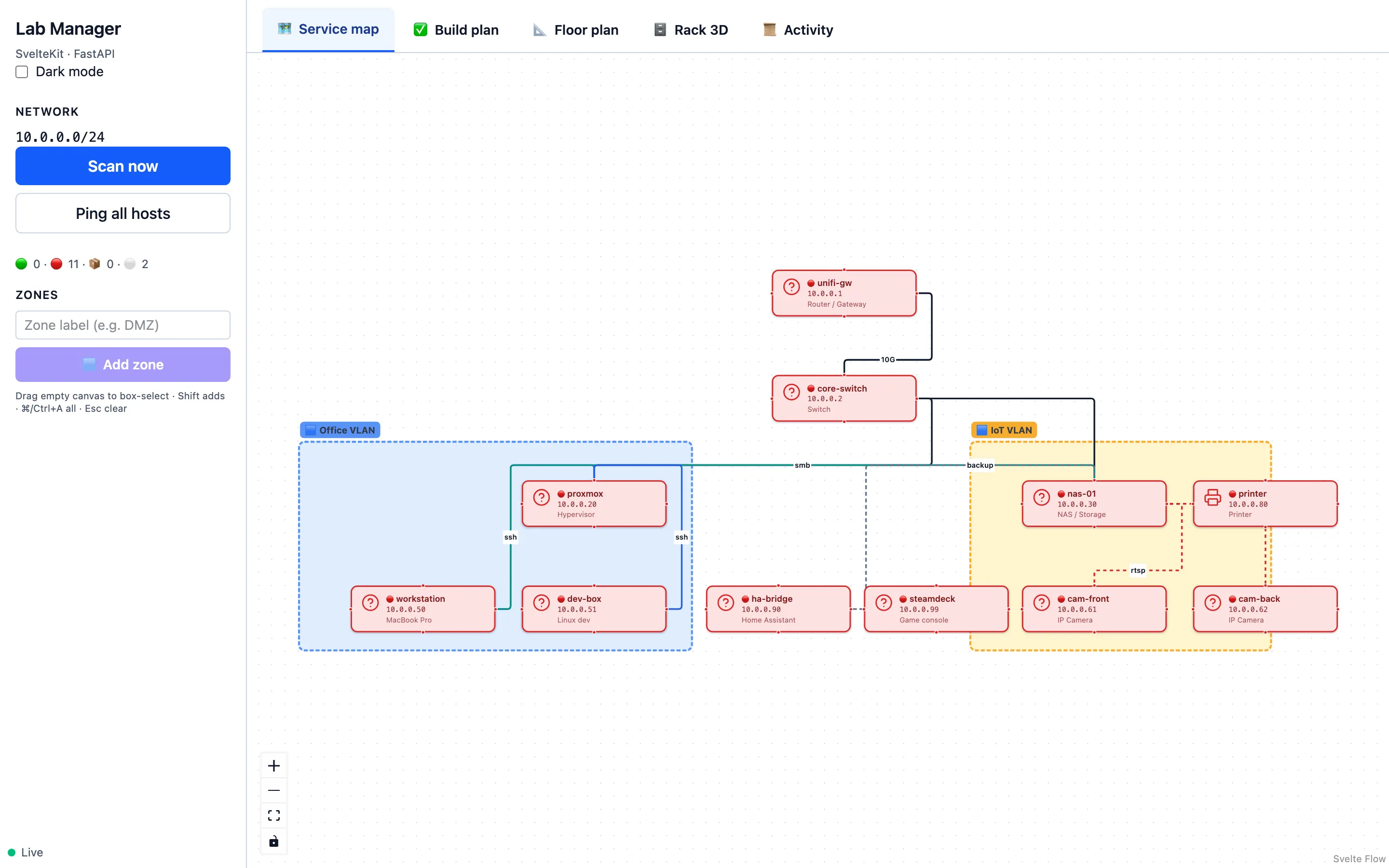

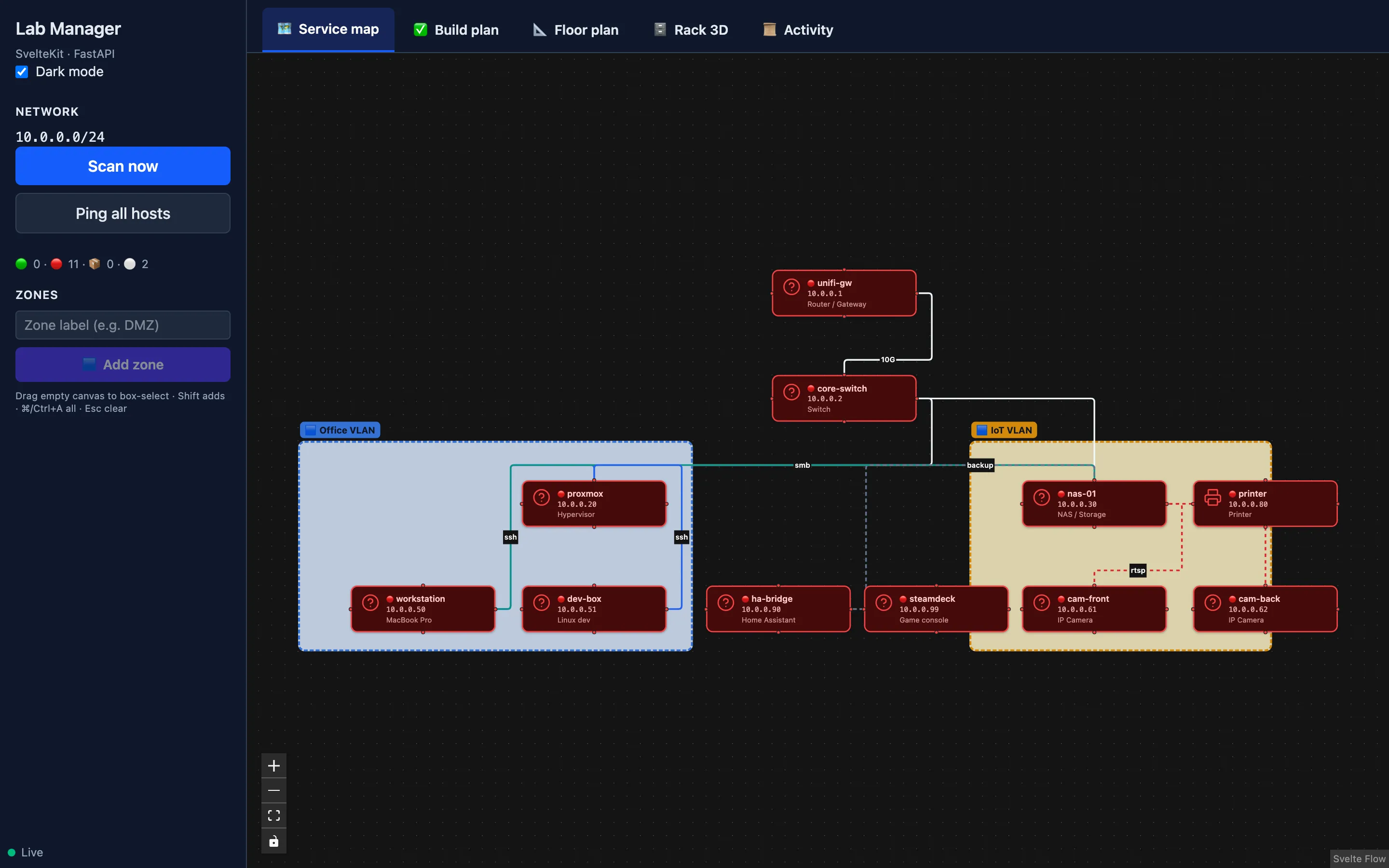

Service map
Drag your network
Drag your network
into existence.
Infinite canvas. Hosts, edges, notes. SSH, HTTP, RTSP, depends-on — typed connections that mean something.
v1.0 · MIT licensed · self-hosted
Your home lab, finally mapped.
A draggable service canvas. A 3D floor plan. A 3D rack designer. Live ping status, all backed by one JSON file you actually own.
signed installers · no telemetry · your data, your machine
Runs on the boring stuff you already have
- macOS Apple Silicon · Intel
- Windows x64 MSI installer
- Linux .deb · AppImage
- Source Python + Node
Built for the homelab nerd
Stop juggling a wiki page,
Stop juggling a wiki page,
a spreadsheet, and a Visio diagram.
Six things that should already exist in the same app. Now they do.

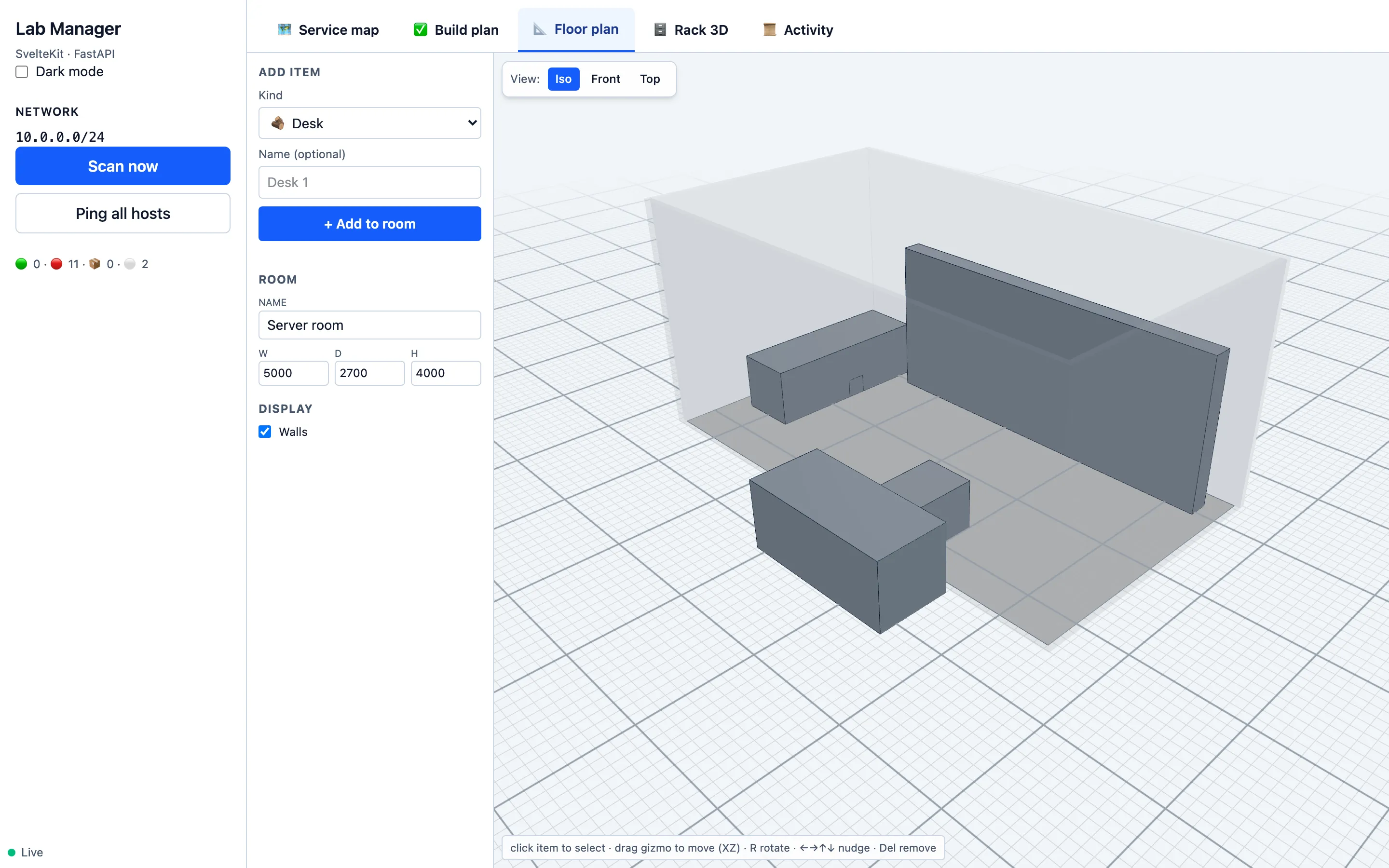

3D Floor plan
The room, in
The room, in
three dimensions.
Walls, racks, desks, cameras. Rotate, pan, zoom — or snap to top-down.

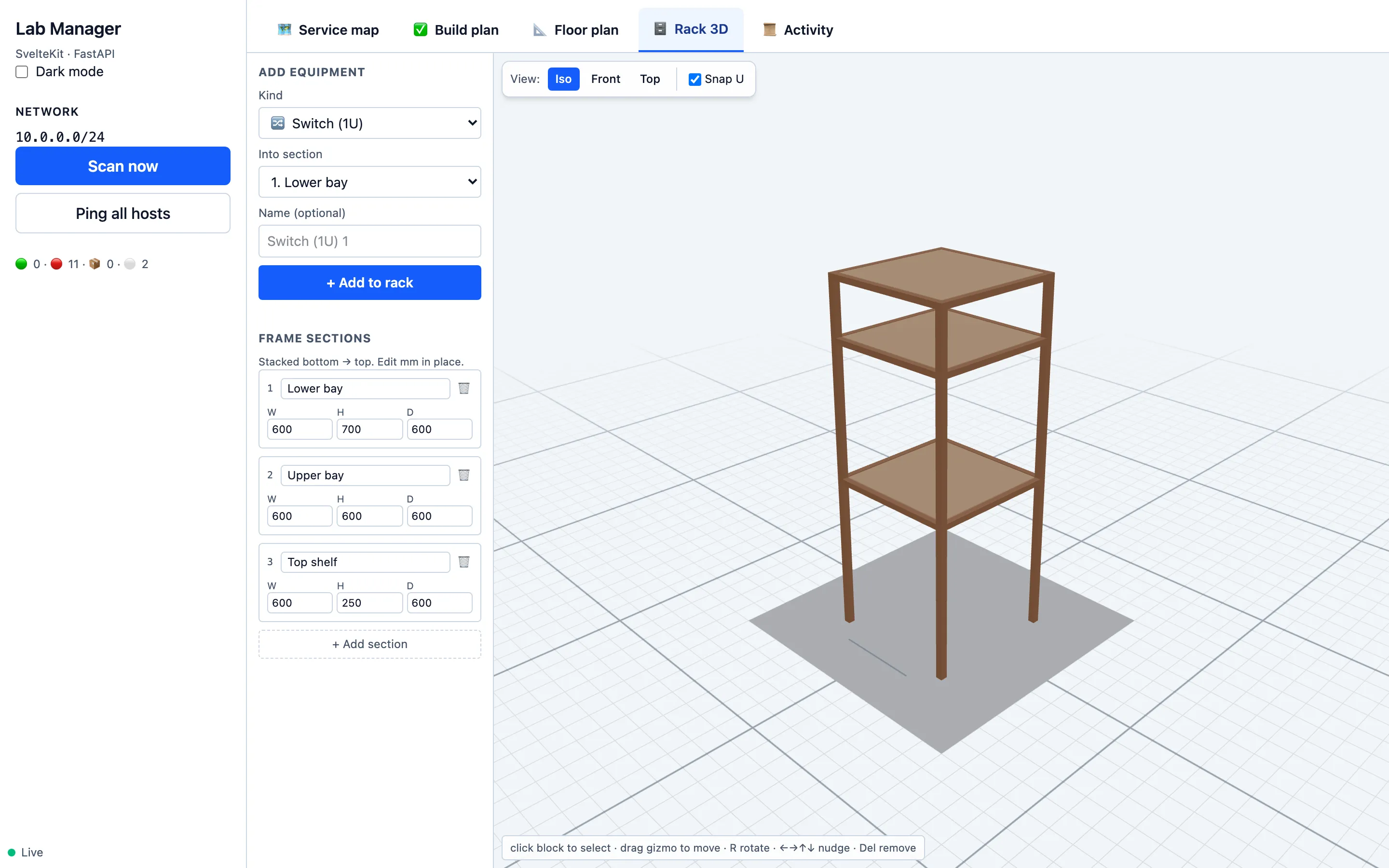

Rack designer
Plywood shelves,
Plywood shelves,
optional U-snap.
Wooden-rack feel. Stacked sections with per-section dimensions, drag-to-place equipment.

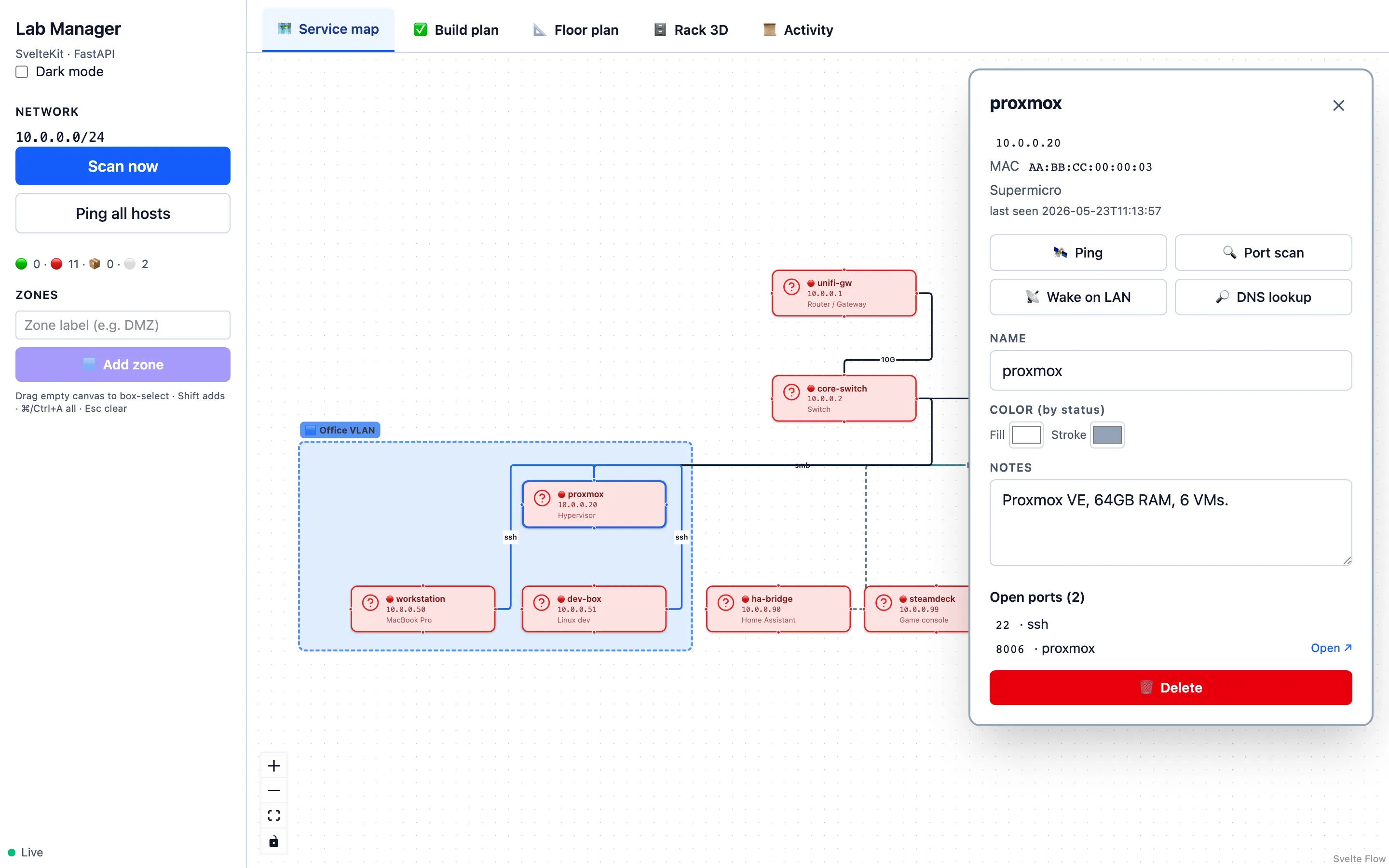

Inspector
Port scan. WoL. DNS. Journal.
Click a host. Everything you need to poke at it, in one panel.
Live status
Pinged every 30s,
Pinged every 30s,
over WebSocket.
When a host blinks, the canvas blinks.
{ "hosts": [ { "name": "nas-01", "ip": "10.0.0.10" } ] }
JSON
Your source
Your source
of truth.
Live, not stale
Your network, in present tense.
The backend pings every host every 30 seconds and pushes state changes over WebSocket. The canvas updates as it happens — no refresh, no polling, no "last checked 4 hours ago."
- Green · port open, latency under 50ms.
- Amber · slow or partial response.
- Red · unreachable. Inspector tells you why.
- No agents to deploy — the scan runs from wherever you launched the app.
Install
Two ways to run it.
Grab the signed installer, or clone the repo and go. Same app either way.
Recommended
signed
Desktop app
A native shell with a bundled Python sidecar. No Node, no Python, no Docker. Double-click and go.
- macOS Apple Silicon.dmg
- macOS Intel.dmg
- Windows x64.msi
- Linux amd64.deb / .AppImage
From source
for developers
Clone & run
The web app talks to a FastAPI backend over HTTP and WebSocket. Hot reload on both.
~/lab-manager
$ git clone https://github.com/joesdevlab/laika-lab-manager $ cd lab-manager $ make install $ make api # :8000 FastAPI $ make web # :5180 Vite + Svelte
Python ≥ 3.10 · Node ≥ 20 with pnpm · optional nmap for richer scans
Architecture
Four moving parts.
Four moving parts.
No mystery.
Standard tools, wired carefully. Read the whole thing in an afternoon.
Tauri 2 · Desktop bundle
Svelte 5 + Threlte
FrontendA static SPA. Canvas with Svelte Flow, 3D scenes with Threlte (three.js).
canvas 3D inspector
http · ws
FastAPI sidecar
BackendPure-Python scanner. TCP connects, ARP cache reads, ICMP ping, UDP magic packets. No nmap required.
ping tcp arp wol
↑ shipped as a single signed installer
lab_topology.json
PersistenceOne human-readable file. Atomic writes. grep it. diff it. rsync it.
read · write
Your network
ProbesStandard transports. No agents. No SNMP. Nothing leaves the machine.
scan · ping · wol
Why it stays simple
- Two services, one bundle. No Docker, no Postgres, no Redis.
- Persistence is a file. Backups are cp.
- The scanner is standard library. No daemons on your hosts.
How it scans
No agents.
No agents.
No SNMP.
No mystery.
Lab Manager talks to your network the same way you would — TCP connects, ARP, ping, a UDP magic packet. Pure Python, no external dependencies.
If nmap
is on PATH, it's used instead for better vendor lookups and MAC discovery — but it's
not required, including in the packaged desktop builds.
→ nothing leaves your machine
- Host discovery async TCP-connect on common ports across the subnet 22 · 80 · 443 · 445 · 3389 · 8080 · 631 · 5000
- MAC + vendor reads the OS ARP cache, parsed cross-platform arp -a
- Port scan async TCP-connect over the ~100-port fast list mirrors nmap -F
- Ping system ping subprocess — no admin needed icmp · 1s timeout
- Wake-on-LAN pure-Python UDP magic packet, broadcast udp/9 · ff:ff:…
Stack
Built on tools you know.
Nothing exotic. Standard pieces, wired together carefully.
FastAPI
PythonBackend, JSON persistence, pure-Python scanner.
Svelte 5 + Vite
FrontendStatic SPA, fast hot reload, tiny runtime.
Threlte
3Dthree.js wrapper powering the floor plan and rack.
Tauri 2
DesktopRust + system webview. No Electron, no Chromium.
PyInstaller
BundleSingle-binary Python sidecar inside the installer.
One JSON file
StateYour topology — readable, diffable, gitignore-able.
FAQ
Quick answers.
Things people ask. If something's missing, open an issue on GitHub.
-
Does this phone home?
No. No analytics, no telemetry, no accounts. The packaged app runs a localhost-only FastAPI sidecar. Network scans run from your machine and stay on your network.
-
Do I need nmap?
No. The bundled scanner is pure Python — TCP-connect across the subnet plus ARP for MAC/vendor. If nmap happens to be on PATH it's used for richer results, but it's never required.
-
Where does my topology live?
In a single JSON file at the OS's app-data path (e.g. ~/Library/Application Support/Lab Manager/ on macOS). Commit it to a private repo, sync it via Syncthing — your call.
-
Will it work on Windows / Linux?
Yes. Signed installers ship for macOS (Apple Silicon + Intel), Windows x64, and Linux (.deb + AppImage). Cross-builds run in CI on every tagged release.
-
Can I run it headless on a server?
Yes — clone the repo, `make install`, `make api`, `make web`. The frontend is a static SPA you can serve behind any reverse proxy. Point your browser at it from anywhere on the LAN.
-
Is this a product or a project?
A project, MIT-licensed, built scratching my own itch. There's no SaaS, no paid tier, no roadmap deck. If you find it useful, star the repo — that's the whole business model.
Get started
Map your lab
Map your lab
in ten minutes.
Download the installer, run the scan, drag the hosts into place. Your network — finally something you can see.
